OXYREVO Heal 50 1.2-1.5 ATA Wheelchair Hyperbaric Chamber

$10,499.00

$11,499.00

Description

A more accessible approach to hyperbaric oxygen therapy, the OxyRevo Heal50 is a lightweight wheelchair-accessible soft hyperbaric chamber offering adjustable pressures up to 1.5 ATA in a comfortable seated configuration.

OxyRevo Heal50 Wheelchair-Accessible Hyperbaric Chamber – Up to 1.5 ATA

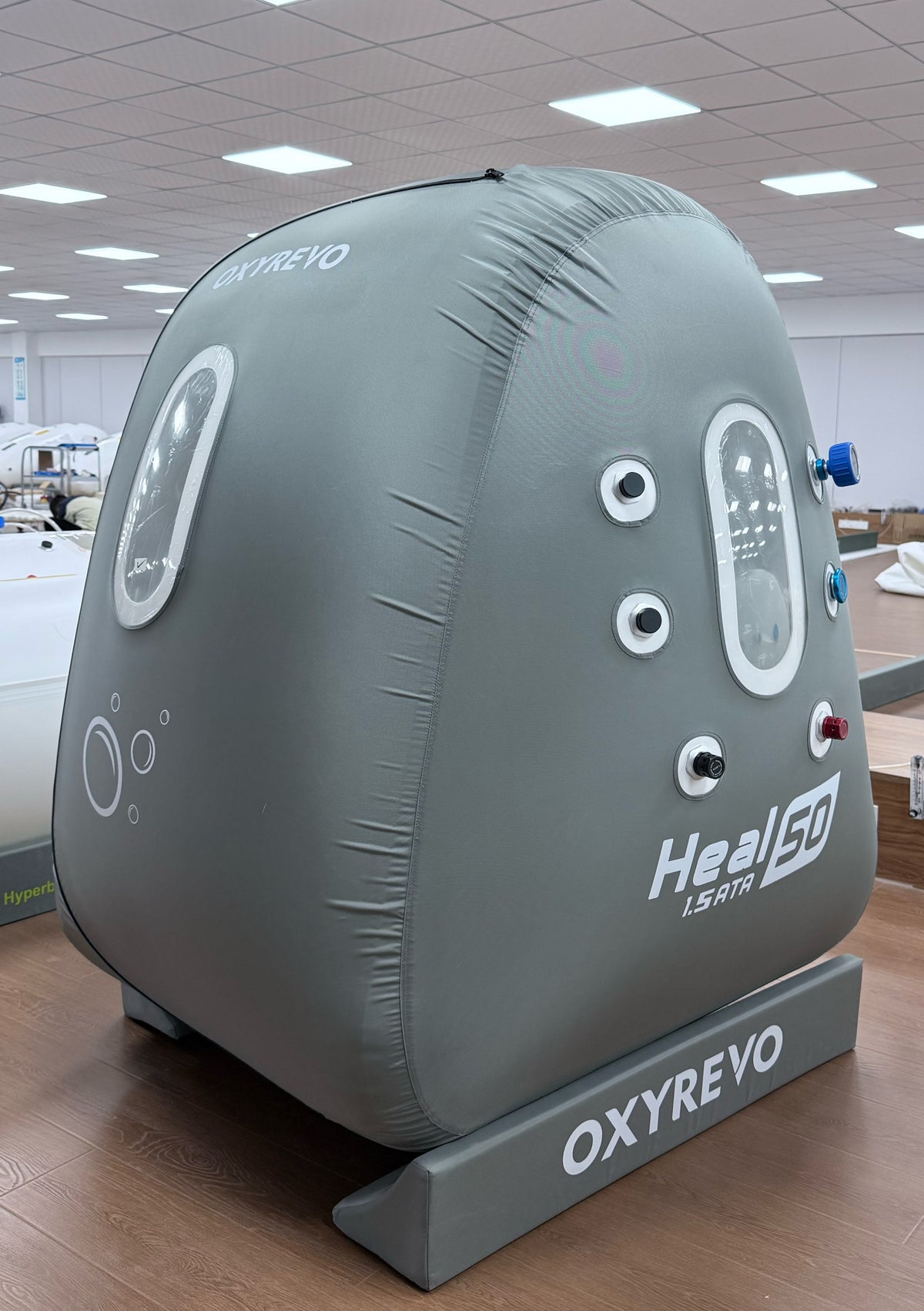

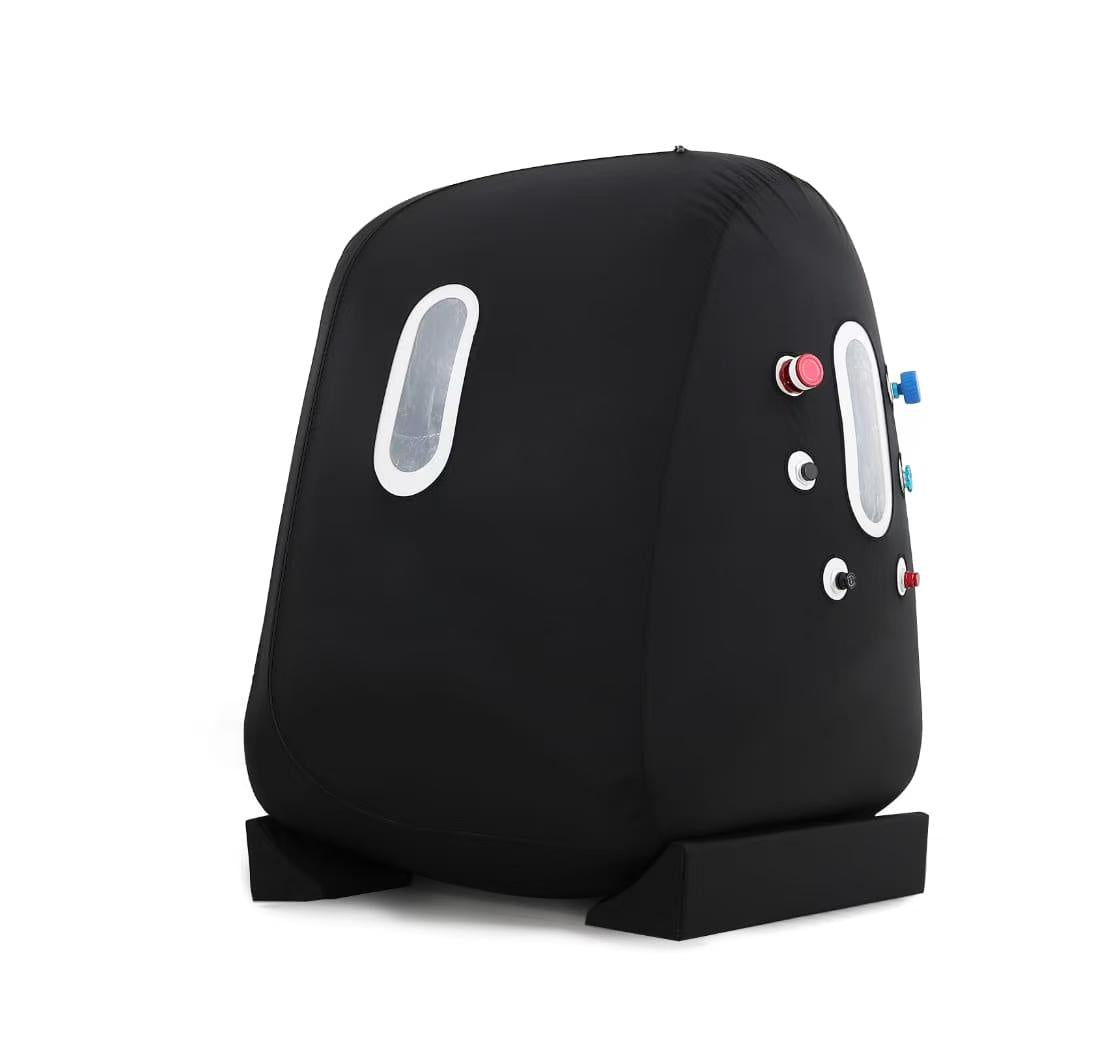

The OxyRevo Heal50 is a soft-sided, seated hyperbaric chamber designed to make hyperbaric oxygen therapy (HBOT) more accessible for wheelchair users and individuals who prefer a seated treatment environment. With a wide entrance, integrated access ramp, and spacious seated interior, the Heal50 allows a wheelchair or standard chair to roll directly into the chamber.

Working pressure can be adjusted between 1.2, 1.3, 1.4, and 1.5 ATA, providing flexibility for different HBOT protocols and user preferences. At just 25 kg (55 lbs) including the chamber and frame, the Heal50 is also designed for convenient mobility between rooms or treatment spaces.

Wheelchair-Accessible Hyperbaric Design

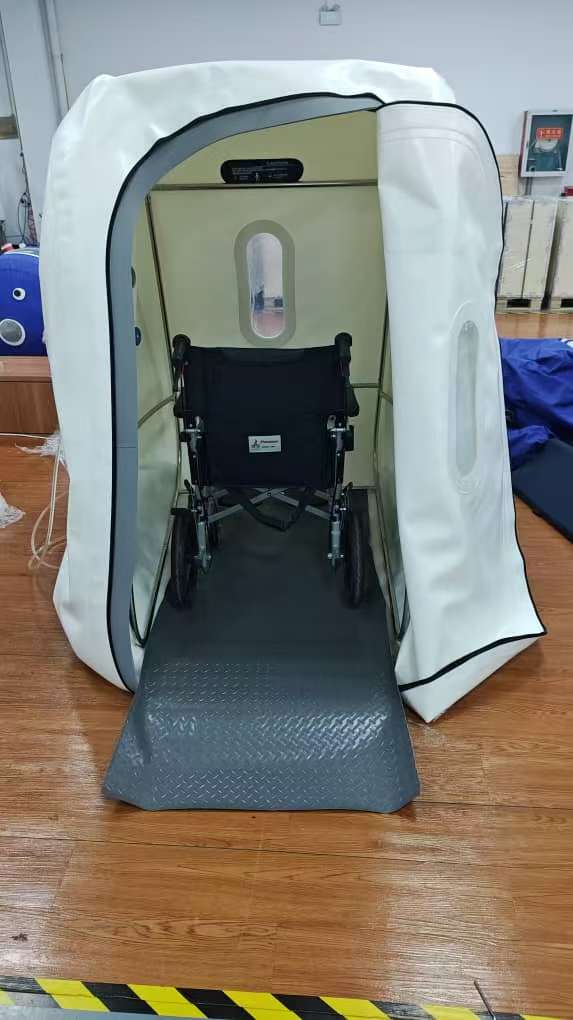

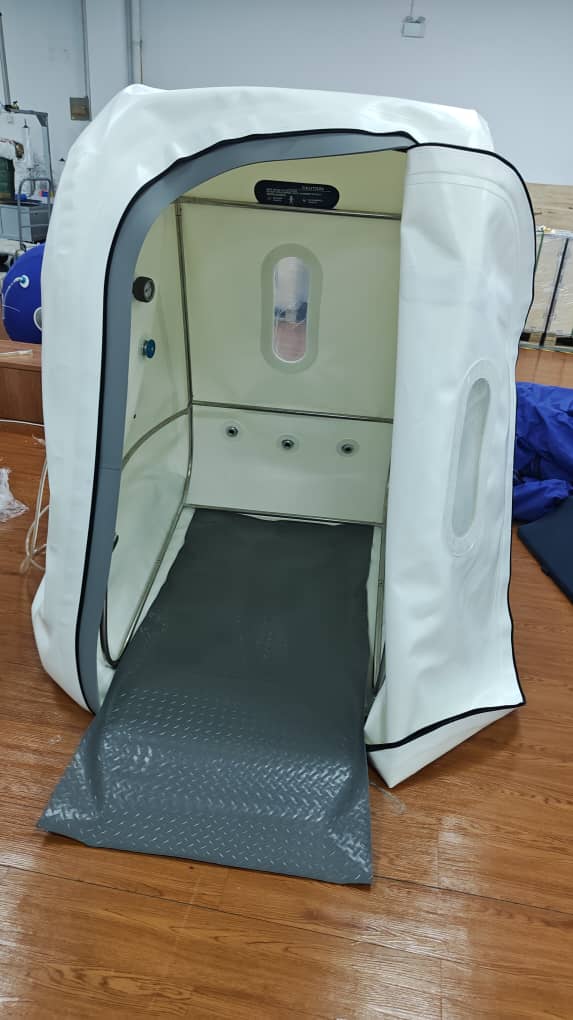

Accessibility is at the core of the Heal50's design. The integrated ramp, wide entryway, and seated configuration eliminate the need to transfer into a traditional horizontal chamber, making the system particularly suited to wheelchair users and seated HBOT applications.

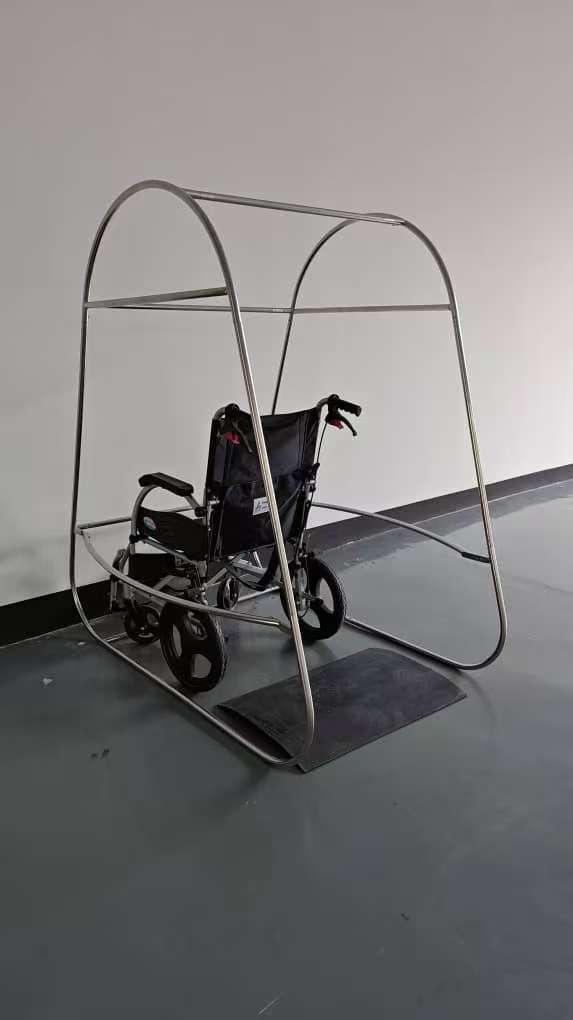

The same design can accommodate a standard chair, giving clinics, wellness facilities, rehabilitation environments, and private users greater flexibility in how the chamber is configured.

Adjustable Hyperbaric Pressure up to 1.5 ATA

The Heal50 offers four selectable working pressures:

1.2 ATA
1.3 ATA
1.4 ATA
1.5 ATA

This adjustable pressure range allows the chamber to be configured according to the applicable HBOT protocol and professional guidance.

Soft, Durable Construction

The Heal50 is constructed using custom 5-ply polyurethane (PU) material with heat-welded, food-grade silicone seams. Curved dual YKK leak-resistant zippers are engineered to require significantly less effort to operate than conventional straight zipper designs.

OxyRevo's custom valves and laser-etched component labels complete the chamber's purpose-built construction.

Oxygen Delivery and Open, Comfortable Interior

The Heal50 includes a 10 L/min oxygen concentrator capable of delivering approximately 95–97% oxygen purity, with optional configurations supporting higher oxygen flow rates of 15 or 20 L/min.

Four large, double-layered windows allow natural light into the chamber while creating a more open, comfortable environment during sessions.

Integrated Pressure Monitoring and Air Management

The chamber features dual aviation-grade pressure gauges, positioned inside and outside the chamber for convenient pressure monitoring. An emergency deflation valve and quiet pressure-relief valves are incorporated into the system for straightforward pressure management during operation.

Customize Your OxyRevo Heal50

Configure the Heal50 to suit your preferred environment and comfort requirements with a selection of optional upgrades.

Every chamber includes a standard air cooler and dehumidifier. For enhanced temperature management, particularly during warmer conditions or extended sessions, the Water Chiller AC Unit provides active cooling.

Choose the AC-Ready configuration if you want the flexibility to add the water chiller system at a later time.

Additional options include:

Red Light Therapy
Anti-static mat
Water Chiller AC Unit
AC-Ready configuration
Custom chamber colours

The standard cover is available in nine colours: grey, black, dark blue, red, light blue, pink, green, purple, and gold, with custom colours available upon request.

OxyRevo Heal50 for Home, Wellness & Professional Environments

With its compact footprint, lightweight construction, wheelchair-accessible entry, adjustable pressure up to 1.5 ATA, and seated design, the OxyRevo Heal50 soft hyperbaric chamber offers a versatile solution for home wellness spaces, clinics, rehabilitation environments, and professional HBOT facilities.

For individuals seeking a wheelchair-accessible hyperbaric chamber, the Heal50 combines accessibility, portability, adjustable hyperbaric pressure, and thoughtful comfort features in a compact soft-chamber design.

Note: This product is custom-made to order. Please allow 6-8 weeks for production and delivery. Track your order status here.

The image shown is a sample representation of the logo and color customizations available.

Features

Exclusive Curved Zipper System
Oxyrevo’s signature curved zipper design uses a gravity-assisted structure that separates the zipper from the sealing strip, reducing friction and making entry and exit noticeably smoother. This ultra-smooth system is exclusive to Oxyrevo and enhances both ease of use and long-term durability.

Durable Laser-Printed Labels (No Paper Stickers)
Instead of low-quality paper stickers that peel or fade over time, every Oxyrevo valve is labeled using UV laser printing technology. The result is crisp, long-lasting markings that look premium and ensure quick, convenient operation.

Ultra-Quiet Pressure Relief Valves
Traditional chambers can be noisy, especially when trying to relax or sleep. Oxyrevo’s redesigned automatic pressure relief valves distribute airflow evenly, dramatically lowering noise levels and creating a calm, peaceful HBOT environment.

Heat-Welded Construction — No Glue, No Stitching
Many chambers rely on glue—which can produce unpleasant odors—or stitching, which weakens over time. Oxyrevo uses high-frequency heat-welding technology for all seams, delivering a non-toxic, environmentally friendly, and exceptionally durable build.

Adjustable 1.2–1.5 ATA Pressure Settings
To help new users adjust comfortably, Oxyrevo’s exclusive pressure conversion system allows you to select 1.2, 1.3, 1.4, or 1.5 ATA with a single touch. This gradual pressure control feature is unique to Oxyrevo, making your sessions more adaptable and comfortable.

Dual Pressure Display (Inside & Outside)
Many chambers only show pressure from the outside, which can lead to confusion or improper adjustments. Oxyrevo integrates two high-precision aviation-grade pressure gauges—one inside and one outside—ensuring consistent, accurate readings at all times for safer operation.

Safety & Comfort Features

Large Multi-Layer Viewing Windows
Seven double-layer heated windows positioned across the top, sides, and foot of the chamber offer brighter visibility, reducing the feeling of confinement and creating a more open, comfortable environment.

Curved Zipper with Medical-Grade Seal
The curved zipper pairs with a custom medical-grade silicone seal, ensuring smooth operation and a secure, airtight closure.

Dual Pressure Gauges
Two gauges—one inside and one outside—allow you to monitor chamber pressure from either position quickly and confidently.

Emergency Release Valve
For added peace of mind, an emergency valve allows the chamber to be depressurized and exited in approximately 30 seconds if needed.

Slow-Rebound Support Mattress
The included high-density slow-rebound mattress offers superior support and comfort, preventing pressure points and enhancing relaxation throughout your session.

For more information please review Oxyrevo's Soft Hyperbaric Chamber Brochure or contact us

Specifications

Specification	Details
Hyperbaric Working Pressure	1.2 / 1.3 / 1.4 / 1.5 ATA — adjustable dial
Chamber + Frame Weight	25 kg / 55 lbs

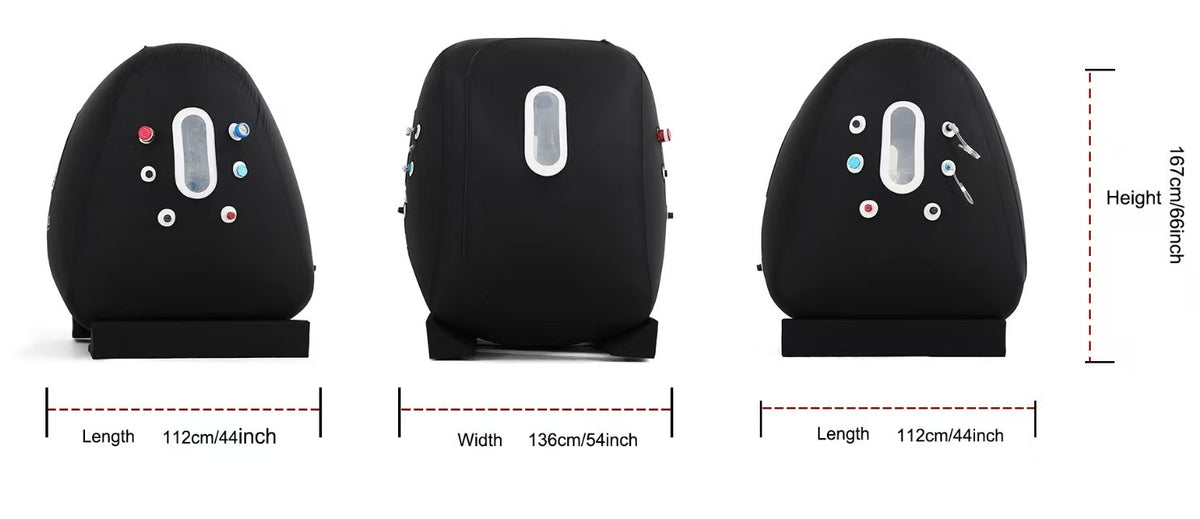

Inflated Dimensions	44.1" L × 53.5" W × 65.7" H (112 × 136 × 167 cm)
Chamber Entry	Integrated wheelchair ramp with seated chamber configuration
Chamber Type	Soft-sided, seated hyperbaric oxygen therapy (HBOT) chamber
Construction Material	Custom 5-ply PU with heat-welded food-grade silicone seams
Viewing Windows	4 large double-layered windows
Operating Sound Level	≤50 dB
Pressure & Safety Features	Emergency deflate valve and dual aviation-grade pressure gauges
Chamber Cover Colors	Grey, Black, Dark Blue, Red, Light Blue, Pink, Green, Purple, Gold
Custom Cover Colors	Available upon request

Standard HBOT Equipment

The Standard configuration uses separate, portable equipment for air compression, oxygen delivery, cooling, and dehumidification, allowing each component to be independently operated and positioned.

Component	Specifications
Air Compressor	85 L/min; oil-free and maintenance-free
Air Cooler & Dehumidifier	120 L/min dehumidifying capacity; no Freon or ice required
Oxygen Concentrator	10 L/min with 95–97% oxygen purity; expandable to 15 or 20 L/min
System Configuration	Separate equipment with individual setup and controls
Air Management	Continuous oxygen supply, cooling and dehumidification
Filtration	Double input/output filters
Design Benefits	Portable, lightweight, economical to transport, and lower-cost configuration

Pro All-in-One HBOT System

The Pro configuration consolidates key HBOT equipment into an integrated all-in-one hyperbaric oxygen therapy system, simplifying operation and equipment management.

Component / Feature	Specifications
All-in-One System Includes	Air compressor, 10 L oxygen concentrator, 2 cooling machines, anion generator, timing alarm, oxygen meter, water container, and air filters
Operation	Integrated functions with one-press activation
Oxygen Delivery	Continuous oxygen supply
Cooling & Dehumidification	Enhanced cooling and dehumidification
Filtration	Double activated carbon filters
Additional Technology	Nano Water Ion Technology
Stated Sterilization Performance	Up to 99% virus sterilization rate

Optional Red Light Therapy Panel

Add red light therapy and near-infrared light therapy to your hyperbaric wellness setup with the optional OxyRevo Red Light Therapy Panel.

Specification	Details
Red Light Wavelength	660 nm
Near-Infrared Wavelength	850 nm
Power Supply	DC 24V
Power Rating	200W
LED Quantity	40 LEDs
Panel Dimensions	9.45" × 5.51" × 1.18"

Air Cooling & Dehumidification System

The standard air cooler and dehumidifier cools and dehumidifies incoming air to improve comfort during hyperbaric oxygen therapy sessions. This is a comfort air-cooling system rather than a dedicated air conditioner. For active cold-air temperature control, the optional Water Chiller AC system is recommended.

Specification	Details
Input Power	AC 220V / 50Hz
Total Power	230W–900W, depending on model
Tank Capacity	4–5 L (approximately 1.0–1.3 gallons)
Cooling Capacity	1,875–6,480 BTU
Temperature Control Range	14°F–68°F (–10°C–20°C)
Temperature Accuracy	±1.8°F (±1°C)
Display Resolution	0.1°F (0.1°C)
Temperature Sensor	PT100
Flow Rate	2.6–4.0 gal/min (10–15 L/min)
Lift Height	10–23 ft (3–7 m)
Cooling Tank Dimensions	Approximately 7" × 6" (Ø18 × 16 cm) to 8.7" × 7" (Ø22 × 18 cm)
Net Weight	66–121 lbs (30–55 kg)
Dimensions	17.72" L × 11.81" W × 21.65" H (45 × 30 × 55 cm)

Heal50 Configuration Options

The OxyRevo Heal50 can be configured to suit different home, wellness, rehabilitation, and professional HBOT environments:

Standard HBOT Configuration — Separate compressor, oxygen concentrator, cooler, and dehumidifier for flexible equipment placement.
Pro All-in-One Configuration — Integrated equipment with simplified one-press operation.
Red Light Therapy — Optional 660 nm red light and 850 nm near-infrared light panel.
Air Cooling & Dehumidification — Standard comfort cooling and moisture control.
Water Chiller AC — Optional active temperature-control system for enhanced cooling.
AC-Ready Configuration — Allows the chamber to be configured for future addition of the water chiller system.

Standard vs. Pro Version Comparison

Category	Standard Version	Pro Version
Air Supply System	Separate units: Air Compressor (AE01), Air Cooler (ZLA01), Oxygen Concentrator (HG10)	All-in-One Machine: Air Compressor, 10L Oxygen Concentrator, 2 Cooling Machines, Anion Generator, Water Container, Air Filters
Operation	Individual setup and manual operation of each unit	Integrated system with one-touch activation for all functions, simplified and convenient
Efficiency	Effective dehumidifying and cooling; continuous oxygen without tank; dual input/output filters for air quality	Enhanced dehumidifying and cooling; continuous oxygen without tank; double activated carbon filters for superior air quality
Additional Features	Affordable, lightweight, and portable for easier transport	Nano Water Ion Technology for purified, disinfected air; virus sterilization rate 99%
Size & Weight	Multiple separate units; lightweight for portability	Compact all-in-one unit: 27.56"L × 13.78"W × 29.53"H, 80 kg
User Focus	Economical choice, suitable for home use with portability	Premium solution for professional-grade home wellness, advanced purification, and streamlined operation

For more information please review Oxyrevo's Soft Hyperbaric Chamber Brochure or contact us

Model Comparisons

OxyRevo Hyperbaric Chamber Comparison

Model	Quick Highlights	Pressure	Cabin Size (L × D)	Weight	Capacity	Wheelchair Accessible	Oxygen Masks	Movable Wheels	Material
Apex32	Portable, single-user, quiet operation	1.5 ATA	90" × 32" (230 × 80 cm)	33.1 lbs (15 kg)	1 Person	No	Yes	No	Medical-grade
Apex36	Larger cabin for extra comfort	1.5 ATA	90" × 36" (229 × 91 cm)	37 lbs (17 kg)	1 Person	No	Yes	No	Medical-grade
Elite32	Lightweight, premium home-use	1.4 ATA	90" × 32" (230 × 80 cm)	28.6 lbs (13 kg)	1 Person	No	Yes	No	Medical-grade
Elite36	Spacious design, accommodates two users comfortably	1.4 ATA	90" × 36" (229 × 91 cm)	33.1 lbs (15 kg)	2 Persons	No	Yes	No	Medical-grade
Forward90	Adjustable pressure, extra-long cabin	1.4–1.5 ATA	90" × 47" (229 × 119 cm)	30 lbs (15 kg)	1 Person & 1 child	No	Yes	No	Medical-grade

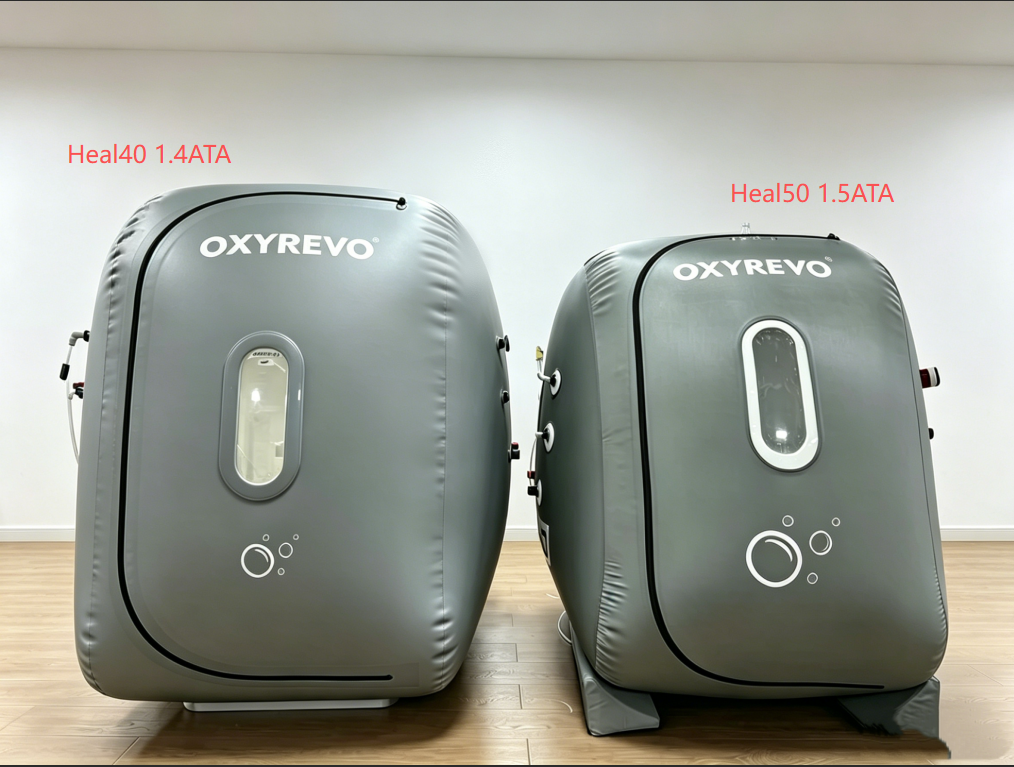

Heal40	Wheelchair accessible, high-capacity chamber	1.4 ATA	67" × 63" × 70" (170 × 160 × 190 cm)	95 lbs (43 kg)	1 Wheelchair	Yes	Yes	No	Medical-grade
Heal50	Wheelchair accessible, seated chamber with adjustable pressure	1.2–1.5 ATA	44.1" × 53.5" × 65.7" (112 × 136 × 167 cm)	55 lbs (25 kg)	1 Wheelchair / Seated User	Yes	Yes	No	Medical-grade

About the Manufacturer

About OxyRevo

OxyRevo is a trusted, professional manufacturer specializing in Portable and Hard Hyperbaric Oxygen Chambers, with a mission to make the powerful benefits of oxygen therapy accessible to everyone. With over 13 years of experience, they have installed thousands of chambers across 87+ countries, supporting more than 3,000 clients on their journey to better health and recovery.

Driven by continuous innovation and customer-focused design, OxyRevo chambers combine cutting-edge technology, precision engineering, and exceptional comfort to create a professional-grade, luxurious wellness experience right in the comfort of your home. Whether you're focused on recovery, performance, or overall wellbeing, our hyperbaric oxygen chambers are built to deliver transformative results with ease and reliability.

For more information please review Oxyrevo's Soft Hyperbaric Chamber Brochure or contact us

Warranty & Supports

Your OxyRevo machine and components is backed by a 2-year manufacturer warranty and lifetime technical support, ensuring long-term peace of mind. In the event of a quality issue during the warranty period, free replacement parts will be provided, along with step-by-step repair instructions using detailed photos and videos. If the issue cannot be resolved with a repair, a new chamber unit will be shipped directly to you at no cost.

As a trusted retailer, Elite Core Health is committed to making your experience seamless from start to finish. We provide personalized support throughout your journey, including live video installation guidance, product training, and expert assistance with setup and maintenance.

With Elite Core Health, you can enjoy the benefits of luxury wellness technology—supported every step of the way.

For more information please review Oxyrevo's Soft Hyperbaric Chamber Brochure or contact us

Product Manuals

Heal 40 User Manual
For more information please review Oxyrevo's Soft Hyperbaric Chamber Brochure or contact us

Returns & Exchanges

Each OxyRevo system is expertly handcrafted and made to order, ensuring the highest level of quality and performance. Due to this bespoke manufacturing process, all sales are final and OxyRevo products are not eligible for return.

Should you need support after delivery, we are pleased to arrange an exchange when applicable or schedule a certified technician to inspect your chamber on-site.
